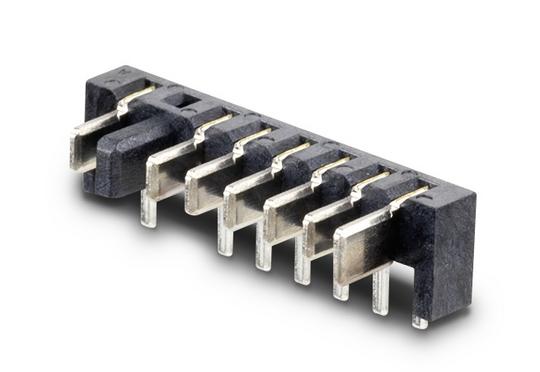

RRC-MC21-90-10
Battery Mating Connector
- Mating connector for standard battery packs in form factors RRC21xx
- 7.00A max. charge or discharge current to battery
- 7-pin male connectors
- 2.5mm pitch
- RoHS and REACH compatible
Are you looking for more information?
Downloads RRC-MC21-90-10
RRC-MC21-90-10
Specifications
| Ratings | |
|---|---|
| Current | 7.00A max. / pin |
| Voltage | 30.00V DC |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | 50µin Nickel on contact area |
| Operating Temperature | -40°C to +105°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 0.04Ohm max. |
| Insulation Resistance | 0.10Ohm min. at 500VDC/1min |
| Dielectric withstanding voltage | 500.00VAC/1min |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 300g min. / pin |
| Dimensions (LxWxH) | 22.50mm x 7.20mm x 5.85mm |
| Weight | 1g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec (EIA-364-56C) |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC21-90-10 | |
|---|---|
| RRC part number | 211268 |
| PCB mounting | 90° |
| Packaging | |
|---|---|
| 27 connectors per tube | |
| 168 tubes per carton | |
