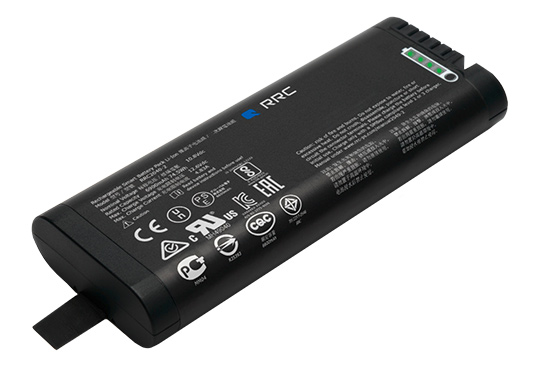

Picture only for reference

RRC2040-2

Standard battery pack RRC2040-2 (3S2P)
with 10.80V / ≥6.80Ah / ≥73.44Wh

  • Worldwide approvals and certification of safety standards
  • No development costs, fast time-to-market
  • Smart batteries with numerous features according to the SMBus specification
  • Integrated LED State of Charge (SoC) indicator
  • State-of-the-art lithium-ion cells with the market’s highest energy density
  • High discharge performance
  • JEITA charging profile optimization
  • Numerous and redundant safety features
  • Battery Life Management: protection against rapid cell ageing
  • Increased ESD protection up to 8.00kV
  • Up to 80% of initial capacity after 800 cycles

Please note that the listed product information and downloads are valid for the latest version of the RRC2040-2. Previous versions can be found here.


Are you looking for more information?

Request product

Downloads RRC2040-2

RRC2040-2 Data Sheet
RRC2040-2 Manual
Safety Data Sheet
UN38.3 Transportation Test DoC
Transportation Certificates China

RRC2040-2

General
Delivery status (battery capacity)<30%

Compliance information

IEC62133 / CE / UL2054 / CAN ICES-003(B) / NMB-003(B) / FCC / UKCA / PSE / KC / BSMI / GOST-R / CMIM / CCC / RCM / BIS / TISI / UN38.3 / RoHS / REACH

Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 50°C max.
-20°C to 25°C recommended

Communication bus

SMBus

Electrical Parameters

Nominal voltage

10.80V

Nominal capacity

≥6.80Ah

Initial impedance

<180mΩ @ 1kHz at 25°C

Max. charge current

≥4.00A

Max. charge voltage

12.60V

Max. discharge current

10.00A

Battery cell configuration

3S2P

Battery chemistry

Lithium Ion (Li-Ion)

Battery Dimensions

Length

150.25mm +0.25/-0.25

Width

58.75mm +0.25/-0.25

Thickness

21.90mm +0.50/-0.25

Weight

336g

Contacts

+, D, C, T, -

Ingress protectionIP40
Safety Features

CUV (Cell Under Voltage)

Protection against deep discharge

COV (Cell Over Voltage)

Protection against over charge

OTC (Over Temperature in Charge)

Protection against overheating while charging

OTD (Over Temperature in Discharge)

Protection against overheating during discharging

OCC (Over Current in Charge) Protection against overcurrent while charging
OCD (Over Current in Discharge) Protection against overcurrent during discharging
OLD (Overload in Discharge) Protection against overload during discharging
SCC (Short Circuit in Charge) Protection against short circuits while charging
SCD (Short Circuit in Discharge) Protection against short circuits during discharging
CTO (Charge Timeout)Protection against prolonged charging
Battery Life ManagementProtection against overcharging when battery aged

POWERPAQ RRC2040-2 is approved worldwide
