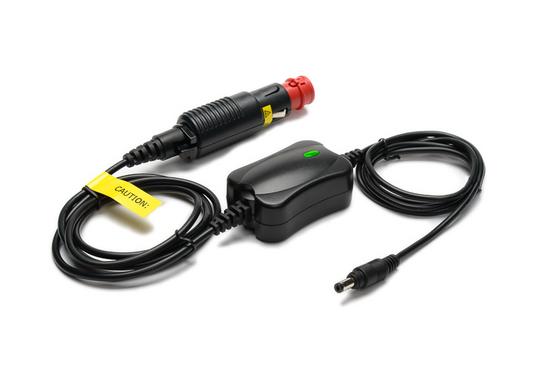

CAR15B
15 Watt automobile power adapter
- Wide input voltage range 9-32V
- Max. output power 15 Watt
- Individual output connector on request
- Car/Truck input connector
Are you looking for more information?
Downloads CAR15B
CAR15B
Specification
| Input | |
|---|---|
| Voltage range | 9.00 - 32.00VDC |
| Standby current | Typical 60.00mA @ 9.00V input Typical 37.00mA @ 32.00V input |
| Input fuse | 3.15A |
| Protection | Reverse polarity (input fuse), |
| Output | |
|---|---|
| Voltage range | 3.00 - 8.00V nominal |
| Power | 15.00W cont. |
| Initial set tolerance | ±3% max. |
| Load regulation | -4% max. |
| Line regulation | ±1% max. |
| Ripple & noise | < 0.09V pk-pk |
| Current limit | Constant current |
| Protection | Short circuit |
Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: -20°C to 40°C Non-operating: -40°C to 85°C |
| Pressure & altitude | Operating: 1200hPa to 570hPa (max. 4600m above sea level) |
| Humidity | 5 to 95% r.H., non condensing |
| General | |
|---|---|
| Input connector | Cigarette lighter adapter |
| Output connector | Customer-specific |
| Efficiency | typical 85% at 100% load |
| MTBF | >20000h @ 25°C ambient temperature and GB per MIL-HDBK217F |
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 WEEE 2012/19/EU |
| Indicator | Single green LED |
| Ingress protection rating | IEC60529, IP40 |
| Regulatory approvals | Europe | CE |
| United Kingdom | UKCA | |
| Australia & New Zealand | RCM | |
| Electromagnetic emissions | Europe | EN55022 class B |
| Electromagnetic immunity | ESD immunity | IEC61000-4-2, 4kV contact, 8kV air |
| Electromagnetic field immunity | IEC61000-4-3,80-1000MHz, 10V/m, modulation 80%/200Hz | |
| Electrical fast transient/burst immunity test | IEC61000-4-4, +/-1kV, 5/50ns | |
| Surge immunity test | IEC61000-4-5, +/- 1kV, 1.2/50(8/20)μs | |
| Conducted Immunity | IEC61000-4-6, 0.15-230MHz, 10V, 80%, 1KHz, AM | |
| ISO-Impulses | ISO7637-2:2004, pulse 1 till 5, immunity test level III |
- Other approvals on request
Housing dimensions (LxWxH) | 61.00 x 41.00 x 29.00mm, without cables and connectors |
Input cable length | 100cm ±5% |
Output cable length | 100cm ±5% |
Weight | 44g, without cables and connectors |
Approvals CAR15B
