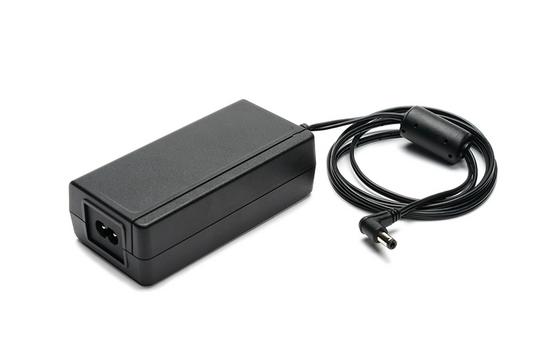

PS65M
65 Watt AC/DC switch mode power supply
- Medical power supply for worldwide use
- Simple operation
- Country specific AC input cables available
- LED for status indication
Are you looking for more information?
Downloads PS65M
PS65M
Specifications
| Input | |
|---|---|
| Voltage range | 100.00 to 240.00VAC ±10%, 50-60Hz |
| Input current | 1.60A max. |
| Stand by power | < 0.21W @ no load |
| Output | |
|---|---|
| Voltage range | 19.00VDC ± 5% |
| Power | 65.00W max. |
| Current | 3.43A max. |
| Ripple & noise | <0.19V pk-pk |
| Protection | Short circuit Over current protection Over voltage protection |
| Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: 0°C to 40°C Non-operating: -20°C to 80°C |
| Pressure & Altitude | Operating: 1060hPa to 540hPa (-382m to 5000m) Non-operating: 1060hPa to 540hPa (-382m to 5000m) |
| Humidity | Operating: 20 to 80% RH Non-operating: 10 to 90% RH |
| General | |
|---|---|
| AC Inlet | IEC320 C8 AC Inlet |
Output connector | DC barrel jack (5.50 x 2.50x11mm) |
| Efficiency | California's Energy Efficiency Level VI |
| MTBF | 300,000h at 25°C ambient |
| Green procurement | WEEE 2012/19/EU |
| Regulatory approvals | Europe | ANSI/AAMI/IEC/EN ES60601-1:2012 (60601 edition 3.1) |
| USA & Canada | Means of Protection: 2x MOPP | |
| Japan | PSE Jet | |
| EMC | Europe, USA, United Kingdom, Morocco | CE, FCC, UKCA, CMIM IEC 60601-1-2:2014 (edition 4.0) The EMC assessment shall be conducted for the end system configuration. |
| Energy efficiency | CEC, DoE Level VI |
Housing dimensions (LxWxH) | 119.00 x 60.00 x 36.00mm, without cables and connectors |
Input cable length | on request |
Output cable length | 1500mm ±30mm |
Weight | 310g, without input cable |
PS65M is approved worldwide
