RRC2037

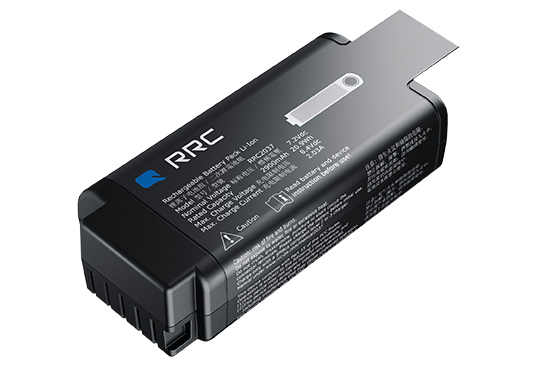

Standard battery pack RRC2037 (2S1P)
with 7.20V / 3.35Ah / 24.12Wh
- Worldwide approvals and certification of safety standards
- No development costs, fast time-to-market
- Smart batteries with numerous features according to the SMBus specification
- Integrated LED State of Charge (SoC) indicator
- State-of-the-art lithium-ion cells with the market’s highest energy density
- High discharge performance
- JEITA charging profile optimization
- Numerous and redundant safety features
- Battery Life Management: protection against rapid cell ageing
- Increased ESD protection up to 8.00kV
- Up to 80% of initial capacity after 800 cycles
Are you looking for more information?
RRC2037
General | |
---|---|
Delivery status (battery capacity) | <30% |
Compliance information | IEC62133 / CE / UL2054 / FCC / UKCA / PSE / KC / BSMI / Gost-R / CMIM / CQC / RCM / BIS / TISI / CAN ICES-003(B) / NMB-003(B) / UN38.3 / RoHS / REACH |
Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 50°C max. |
Communication bus | SMBus |
Electrical Parameters | |
---|---|
Nominal voltage | 7.20V |
Nominal capacity | 3.35Ah |
Initial impedance | Max. 120mΩ @ 1kHz at 25°C |
Max. charge current | 2.03A |
Max. charge voltage | 8.40V |
Max. discharge current | 4.50A |
Battery cell configuration | 2S1P |
Battery chemistry | Lithium Ion (Li-Ion) |
Battery Dimensions | |
---|---|
Length (min. – max.) | 85.39mm +0.40/-0.40 |
Width (min. – max.) | 41.99mm +0.40/-0.40 |
Thickness (min. – max.) | 22.40mm +0.40/-0.25 |
Weight | 121g |
Contacts | +, C, D, T, - |
Ingress protection | IP40 |
Safety Features | |
---|---|
CUV (Cell Under Voltage) | Protection against deep discharge |
COV (Cell Over Voltage) | Protection against over charge |
OTC (Over Temperature in Charge) | Protection against overheating while charging |
OTD (Over Temperature in Discharge) | Protection against overheating during discharging |
POWERPAQ RRC2037 is approved worldwide
![European Union](/fileadmin/_processed_/d/e/csm_CE_3de92c7897.png)
![United Kingdom](/fileadmin/_processed_/3/b/csm_UKCA_black_fill_738cc24b8d.png)
![Morocco](/fileadmin/_processed_/a/d/csm_CMIM_Logo_cbb12206d4.jpg)
![USA & Canada](/fileadmin/_processed_/9/e/csm_ul_neu_bdb38cbfb4.png)
![China](/fileadmin/_processed_/4/6/csm_cqc_f141214a31.png)
![India](/fileadmin/_processed_/c/1/csm_bis_745b4fe7a1.png)
![Australia & New Zealand](/fileadmin/_processed_/b/9/csm_rcm_ca6a89b389.png)
![Korea](/fileadmin/_processed_/1/f/csm_kc_a61f90de30.png)
![Taiwan](/fileadmin/_processed_/1/8/csm_bsmi_84b858ef46.png)
![Japan](/fileadmin/_processed_/b/f/csm_pse_21ee0bed4a.png)
![Russia](/fileadmin/_processed_/a/d/csm_Gost_4608903d08.png)
![Thailand](/fileadmin/_processed_/9/b/csm_tisi_2507035e74.png)
![UN38.3](/fileadmin/_processed_/f/c/csm_un_9510875177.png)
![International Recycling](/fileadmin/_processed_/5/9/csm_recycle-muelltonne_4259f3708f.png)
![Battery Recycling](/fileadmin/_processed_/4/2/csm_recycle-1_45390f8cb7.png)
![Recycling Taiwan](/fileadmin/_processed_/5/1/csm_recycle-2_0d47e14cfe.png)
![China RoHS](/fileadmin/_processed_/6/2/csm_recycle-rohs_d07c8e0bad.png)
![Recycling USA & Canada](/fileadmin/_processed_/d/c/csm_recycle-us_382fc829fa.png)
![EMC for USA & Canada](/fileadmin/_processed_/a/c/csm_fcc_18ce4473d8.png)
